Ground Plane antenna calculator

About

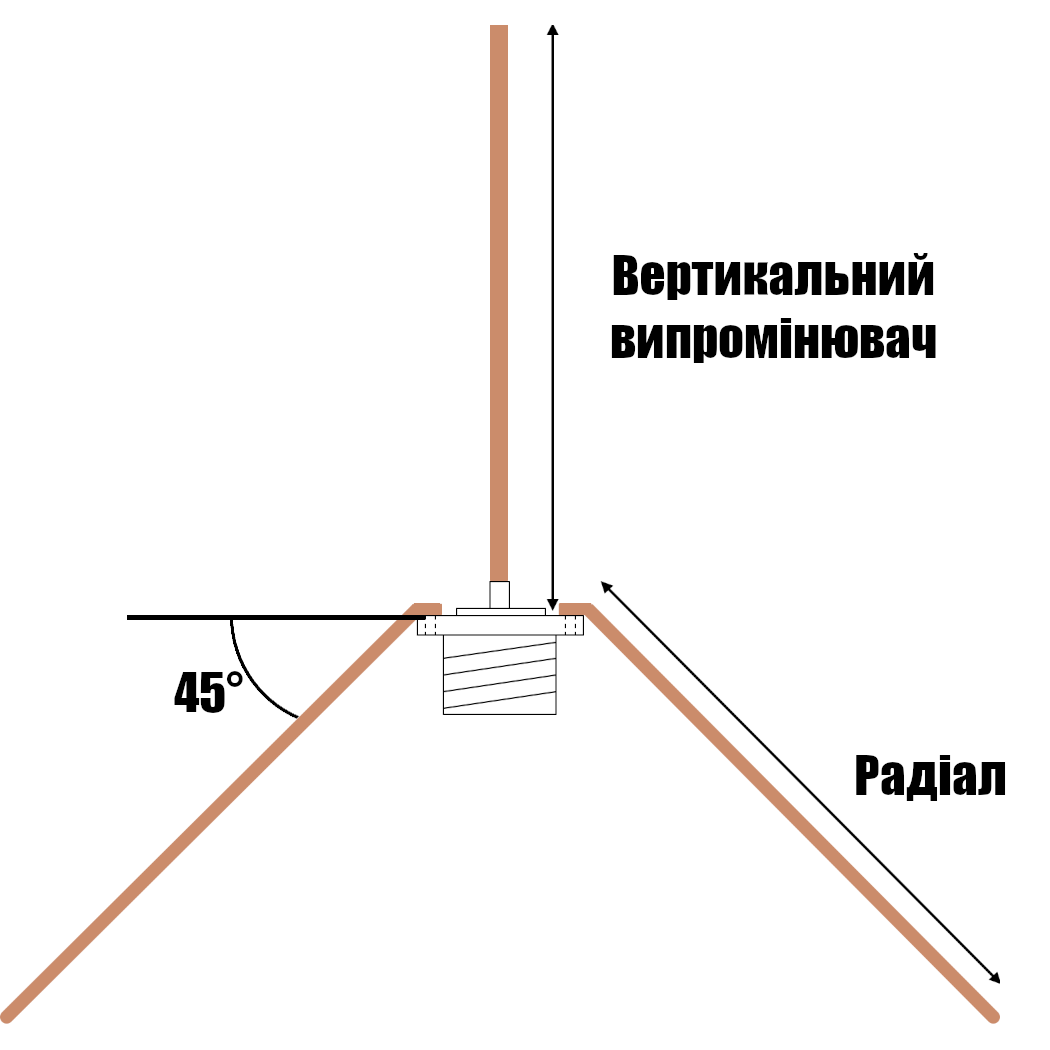

This calculator determines the length of each element of a Ground Plane antenna. That covers the vertical radiator and the radials.

Робоча частота МГц Результат Довжина хвилі (λ) см Вертикальний випромінювач см Радіали см

Notes

• The wavelength is calculated with the standard formula.
• The calculation assumes a quarter-wave configuration.
