A quick earthing trick that avoids cutting into the cable

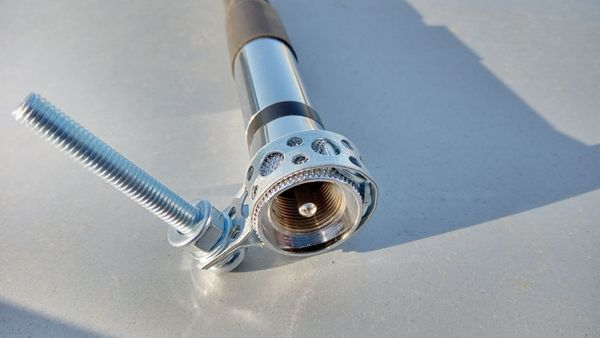

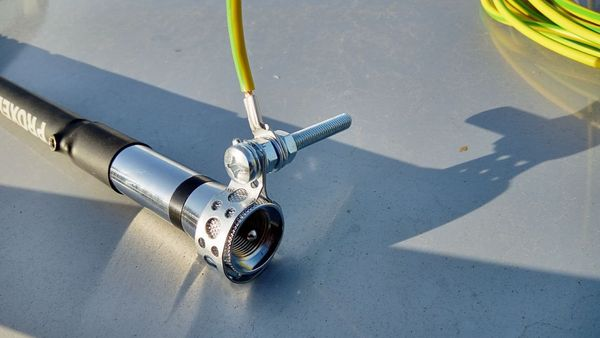

Take an ordinary hose clamp and fit it to the body of the feeder connector, then run a busbar from there to the rebar or to a separate earthing loop. You do have to understand, though, that protection of the antenna and feeder system and of the equipment must be comprehensive, and must start at the antenna end rather than only at the transceiver.

The first thing to watch

People often try to press into service the surge arresters or varistors intended for UTP (Ethernet) cable, which is wrong. The first thing to establish is how much power will be applied and what antenna is in use. The arrester must be chosen with a striking voltage about 1.5 times higher than the peak voltage in the feeder at an SWR of a little over 1.5–2. Typical arrester currents are 100–200 kA. For smaller currents the closest match is an arrester made from spark plugs without a built-in resistor. The gap should then be set for a little more than the applied power (for dry air under normal conditions the breakdown strength is of the order of 30 kV/cm). And then, if the earthing arrester is fitted on the antenna side, a choke balun with an additional arrester after it becomes essential. The reason is that when it fires, the arrester on the antenna side equalises the potentials on the centre conductor and the braid, leaving a difference equal to the striking and sustaining voltage of the discharge. As a result the induced lightning pulse becomes common-mode as far as the choke is concerned, and the choke attenuates it effectively — though not completely.

The second thing to watch

A choke balun wound from the feeder is often credited solely with the role of a balancing device that suppresses unbalanced currents and common-mode interference when a balanced antenna is fed with an unbalanced feeder. But it is also an effective part of comprehensive protection against induced lightning pulses, because for the fast current pulses characteristic of discharges the choke (a few turns of cable) presents a high reactance.

Taken together, the following protective measures should be observed:

Earthing of the mast
A short-circuited antenna
A choke balun of at least 50 µH for high reactance to discharge pulses, and arresters both at the antenna and after the choke
Use of feeder cable with a braid cross-section of at least 10 mm²
Earthing at the equipment end
Disconnection of the antenna and feeder system, kept well clear of metal heating pipes
